Research Whole Slide Imaging
PANNORAMIC 75

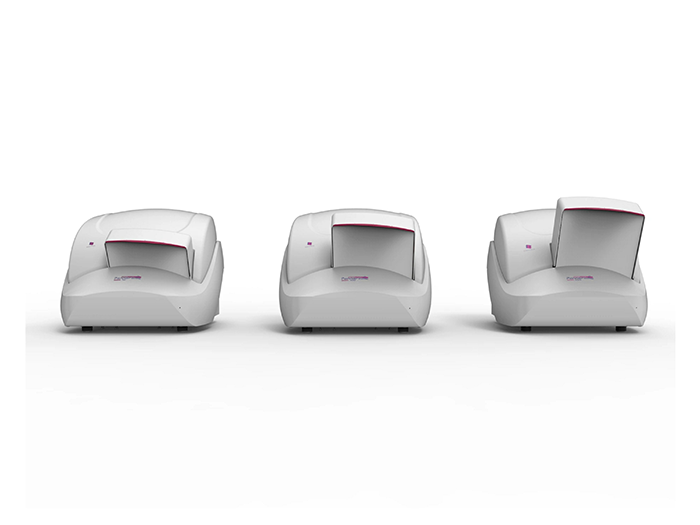

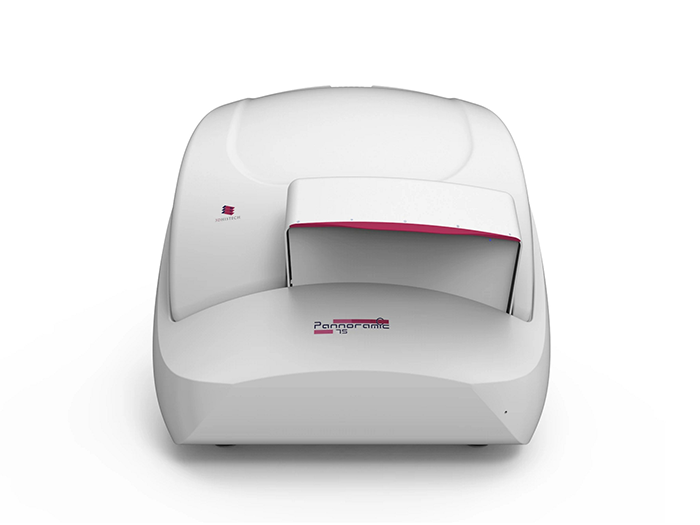

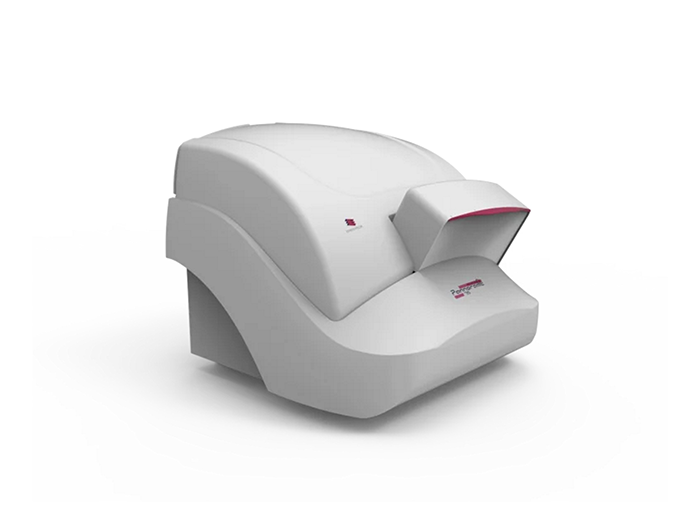

The Pannoramic 75 is a versatile digital slide scanner designed for the high-resolution brightfield and fluorescence whole slide imaging. With a 75-slide capacity, automated scanning equipped with a continuously moving stage, advance Plan-Apochromatic optics including a 10x objective, and a back-illuminated sCMOS camera, it delivers exceptional image clarity and efficiency for research applications.
Overview
High-performance digital slide scanner designed for brightfield and fluorescence whole-slide imaging enhances workflow efficiency by reducing hands-on time and automating key imaging processes.
- Manufactured by 3DHISTECH"
Products
| Product Number | Brightfield vs Fluorescence | Capacity | Throughput | Scanning Resolution | Action |
|---|---|---|---|---|---|
| P75BF80FL60CL4-S (RX): P75 Rx Solution 80x FL 60x CLED 4 | Brightfield & Fluorescence (Cool LED 400) | 75 | Brightfield mode: 1 min 30 sec* / Fluorescent mode: 8 min 30 sec** | Brightfield: 51x/103x (0.19/0.10 um/pixel) Fluorescence: 49x/98x (0.20/0.10 um/pixel) | Request a Quote |
| P75BF80FL90CL8-S (RX): P75 Rx Solution 80x FL 90x CLED8 | Brightfield & Fluorescence (Cool LED 800) | 75 | Brightfield mode: 1 min 30 sec* / Fluorescent mode: 8 min 30 sec** | Brightfield: 51x/103x (0.19/0.10 um/pixel) Fluorescence: 49x/98x (0.20/0.10 um/pixel) | Request a Quote |
| P75BF4080-S (RX): P75 Rx Solution 40x 80x | Brightfield | 75 | Brightfield mode: 1 min 30 sec* / Fluorescent mode: 8 min 30 sec** | Brightfield: 51x/103x (0.19/0.10 um/pixel) | Request a Quote |
| P75BF4080DX- S (DX): P75 Dx Solution 40x 80x | Brightfield | 75 | Brightfield mode: 1 min 30 sec* / Fluorescent mode: 8 min 30 sec** | Brightfield: 51x/103x (0.19/0.10 um/pixel) | Request a Quote |
*Scan speed: Brightfield mode: 0.19 μm/pixel (15 mm x 15 mm, 5MP high perf. CMOS), Fluorescent mode:
0.33 μm / pixel (1.0x camera adapter, 4.2MP Scientific CMOS, 3 fluorescent channel, 20 ms exposure time).
**Fluorescent option: Research use only
